Thumbnail Model # Description
HTMH Horizontal Tap Motor Holder. Used in place Vertical Tap Motor Holder. 2 bolts hold either vertical or horizontal holder onto tap arm. Does not include tap motor.

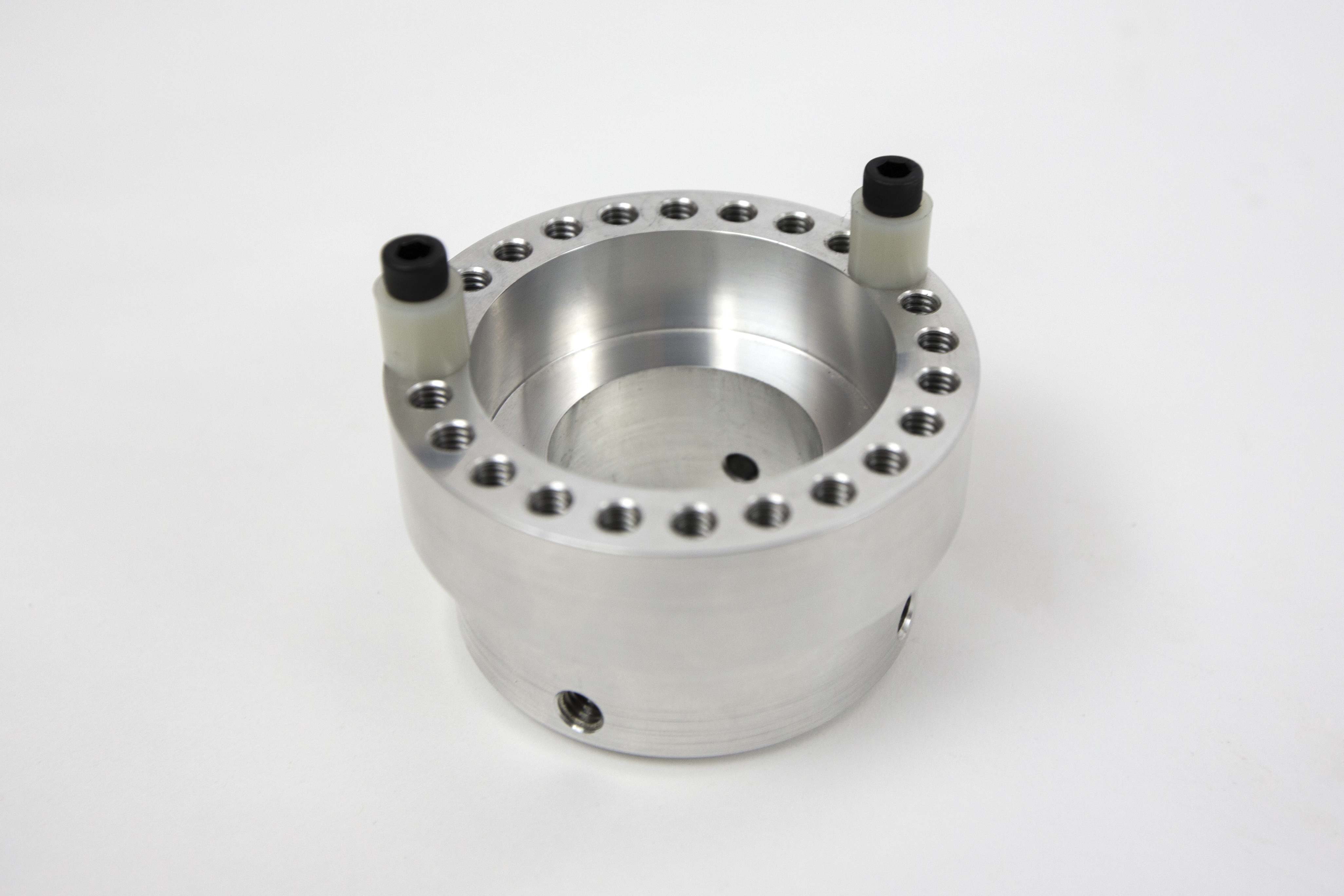

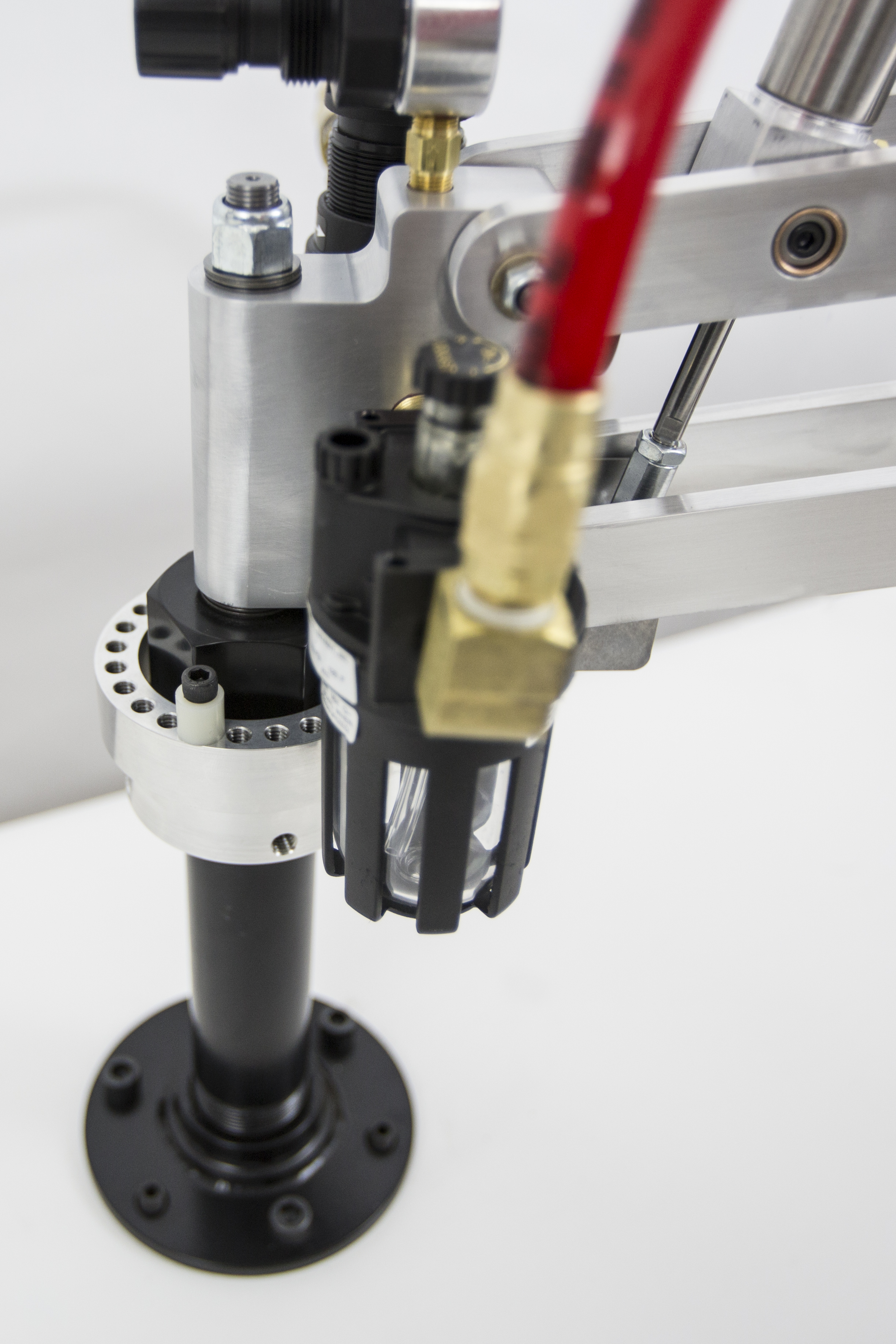

RS2 Adjustable Rotational Stop for Shoulder Pivot. Prevents unnecesary collision between your tap arm's parallel rack and other work aparatus to the rear of the arm. It does not restrict the movement at the elbow.

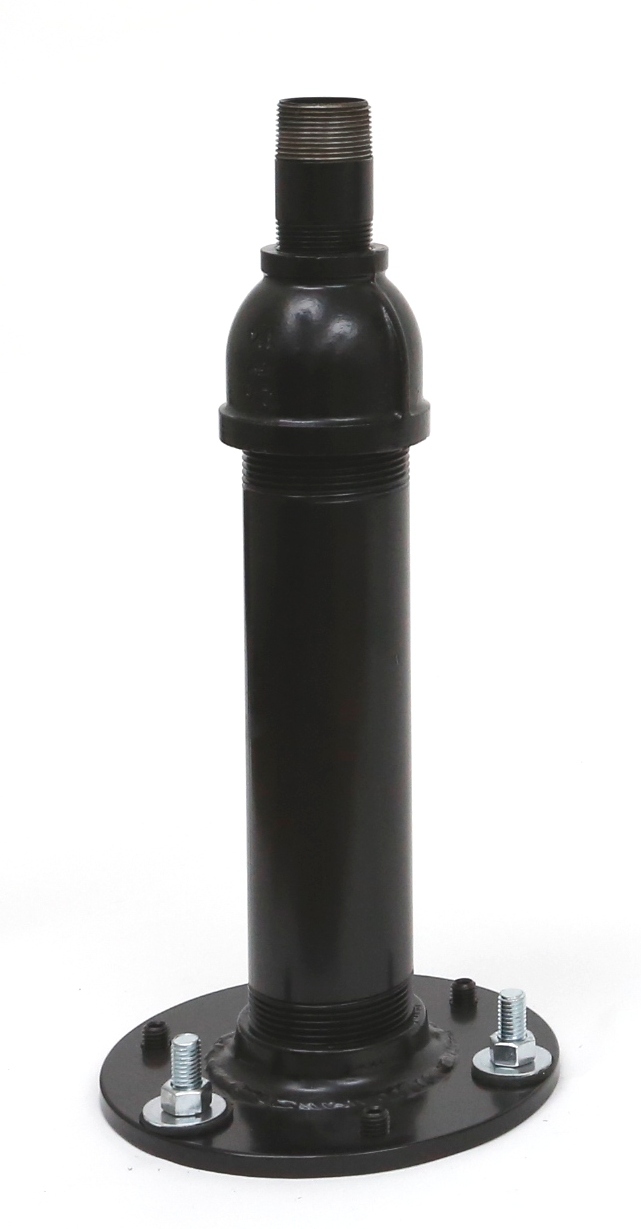

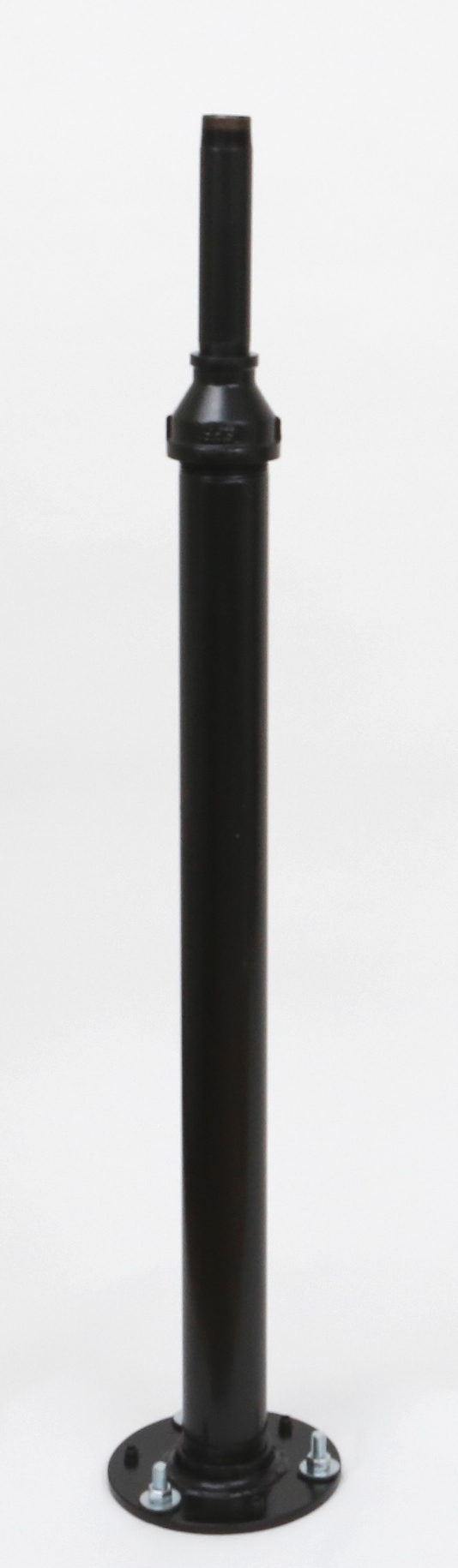

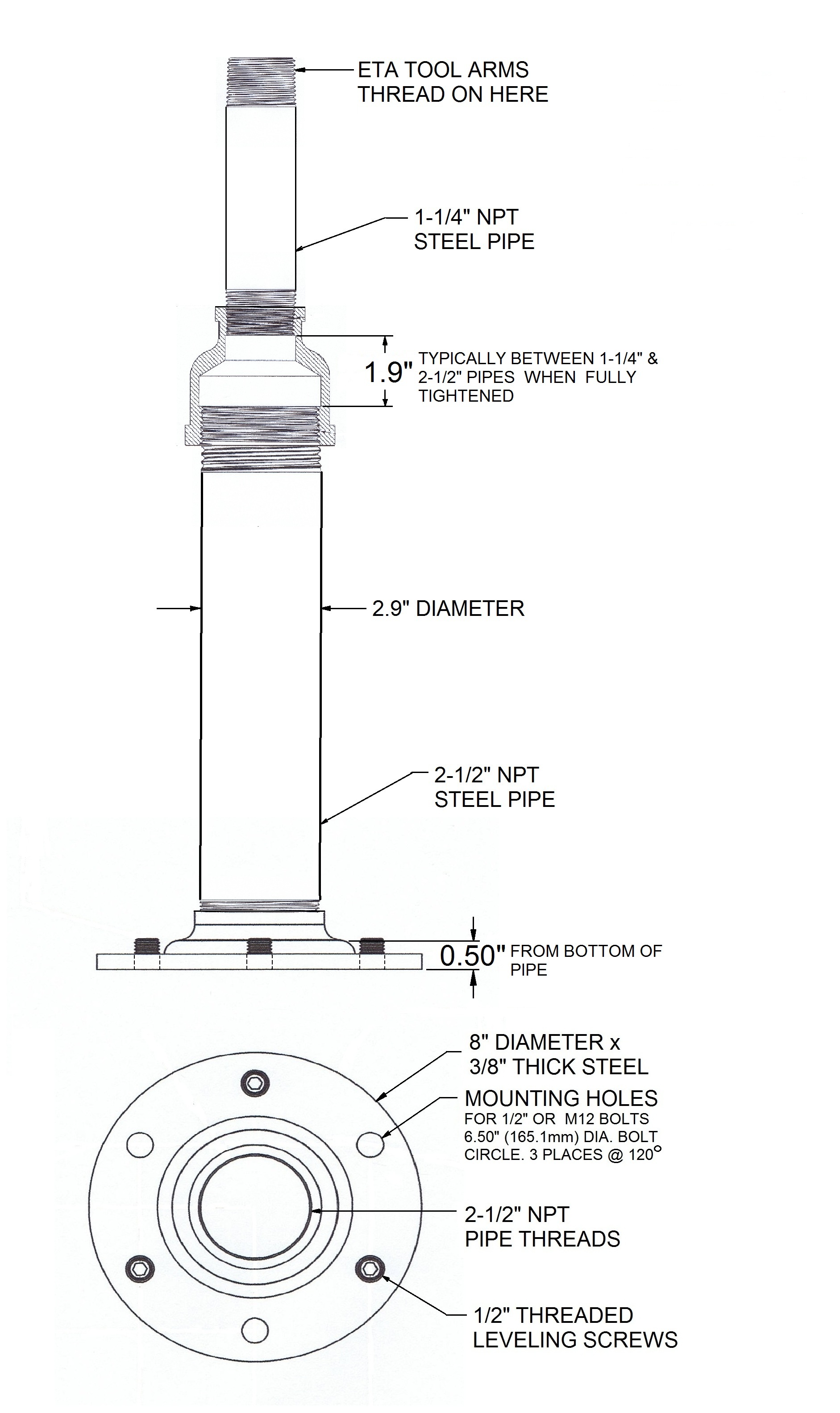

B250-0 Heavy Duty Base for floor or overhead mounting. Adds needed rigidity when mounting surface is more than 2 feet from arm shoulder. Kit includes 8" diameter plate for 2-1/2 npt pipe with holes for [3] 1/2" bolts and [3] leveling screws and a 2-1/2 npt x 1-1/4 npt reducing coupler. Appropriate lengths of 2-1/2 and 1-1/4 npt iron pipe supplied by others.

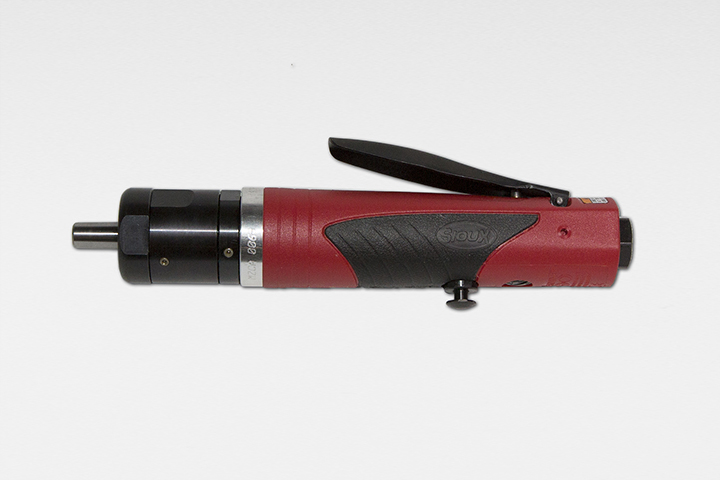

STM-45 Spare SIOUX Signature Series Motors 300 RPM Free Speed @ 400 in.lbs (45 Nm) torque
STM-37 500 RPM Free Speed @ 325 in.lbs (37 Nm) torque
STM-25 700 RPM Free Speed @ 220 in.lbs (25 Nm) torque
STM-16 1,200 RPM Free Speed @ 145 in.lbs (16 Nm) torque

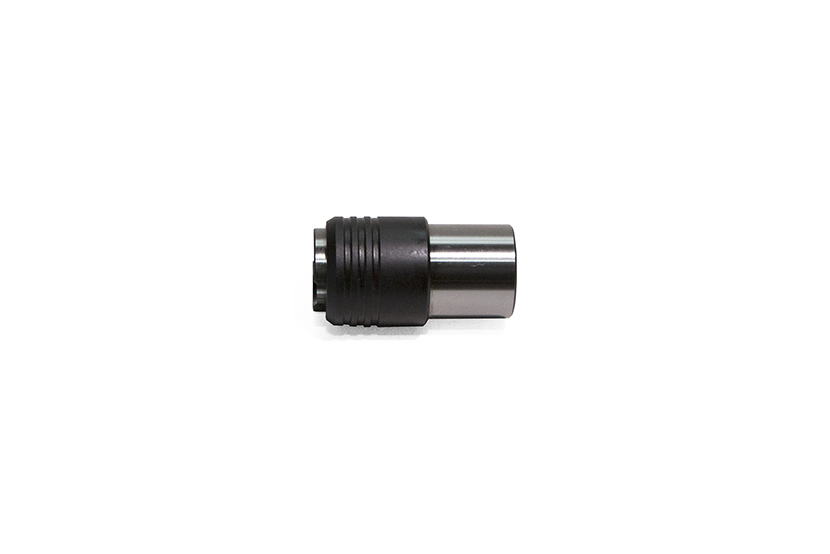

TMH-1B12 Bilz Size 1 Quick Change Tap Chuck with B12 female taper. Standard equipment with a TA-Series Tap Arm System.

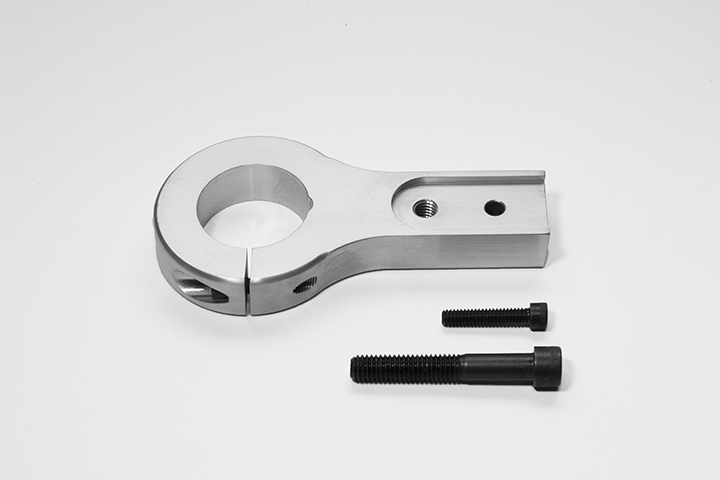

STP Tap Motor Holder for vertical tapping. Standard equipment with a TA-Series Tap Arm System.
The best value in Tap Arm Systems for size 0 through 5/8" threads is our TA- Series tapping arms. Fit, function & longevity of the TA Series Tapping Arm comes from simple yet durable design and our tap arm systems come at a very practical price. Precision machining and hand fitting of components during assembly make ETA tap arms the Swiss watch of tapping arms. We back this statement with a 3 year warranty against wear-out. These floating tap arms offer the most flex ability in a tap arm. It's easy to adjust our tapping machine to float up and out of the way between holes or when not in use or you can set the float tap arm to suspend perfectly in any position. Movement of ETA tapping arms is virtually effortless. Threads are formed or cut without torque reaction because the tap arm keeps the tool from spinning. Once set up properly, the tap arm machine also guides the tap and keeps it in perfect alignment with the hole. TA Series Tapping Arms are designed, machined and assembled in the United States by Americans . Our Bilz tap chuck and Bilz tap adapters are made in Germany and are interchangeable with T.M. Smith, Flexarm, Collis, Universal, Lyndex, 3Arm, Accupro, Centaur, Emuge, Erickson, Parlec, and others.
